Wire Mesh Demister
A demister drawing showing segment plan and numbers. Its diameter is 4200 mm.

Φ4200 mm 316L Demister
Donut-shape demister used in sea vessel scrubber upstream

Wet Filter Demister
Ring-shape demister used in sea vessel scrubber downstream.

Vessel Scrubber Demister
A simple drawing of a demister, that usually is used in boiler steam drum.

Boiler Steam Drum Demister
A kind of demister with edges wrapped by metal plate.

Edge Wrapped Demister

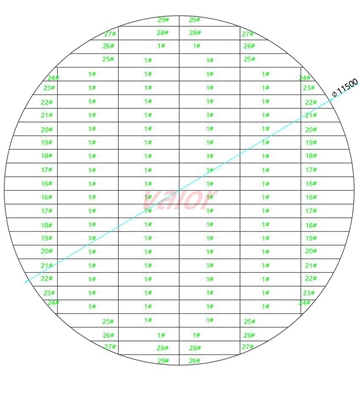

Φ11500 mm Demister in 316L material

Φ11500 mm 316L Demister

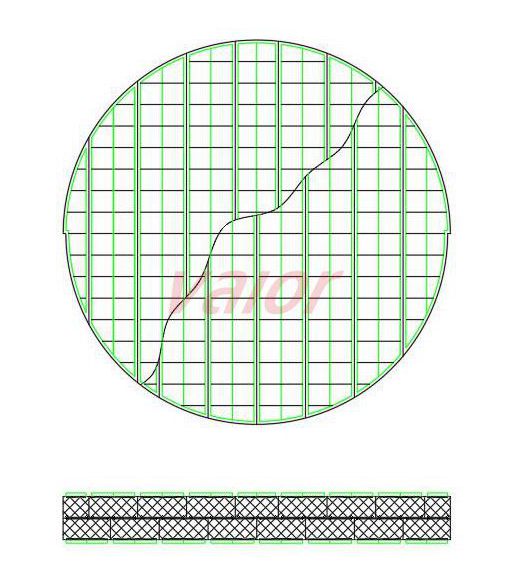

A demister drawing with outer diameter 2700mm, but it is not a standard circle with lower hemi-circle diameter 2662mm.

Φ2700 Demister Coalescer in Monel Material

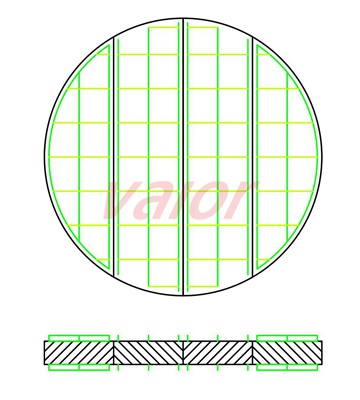

A Φ1219 demister drawing in 4 pieces.

Φ1219 Demister Mesh Style 431 in Titanium Matarial

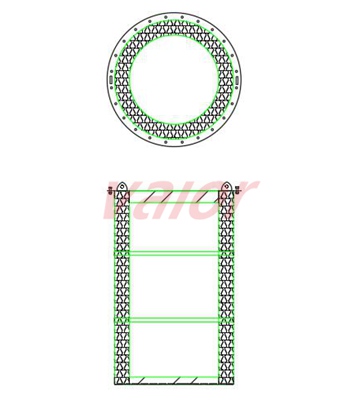

A demister drawing with customized drum shape.

Customized Demister Filter Like A Big Basket
