Hebei Wojun Factory Produces Various Kinds of Knitted Mesh in Large Quantity.

We produce knitted wire mesh mainly for own use in making mesh pad demisters. We need tons of knitting mesh every month in stainless steel, plastic, and co-knit of both material. Among which, stainless steel 304, 316L, 321, S32205, etc. are mostly used. We keep large stock of such material so usually can make immediate delivery when order comes.

Meanwhile the knitted mesh has many other applications. For example, 304SS knit mesh rolls in certain widths are used in some pipeline insulation projects. These double-layer plain mesh sleeve rolls are often required in width as 305mm [12″], 457mm [18″], 610mm [24″], 762mm [30″], 914mm [36″], 1067mm [42″].

Another case is cleaning the screws and barrels of plastic extruder with copper knitted mesh. Pure copper wire mesh is also famous in family pest control and garden plants protection.

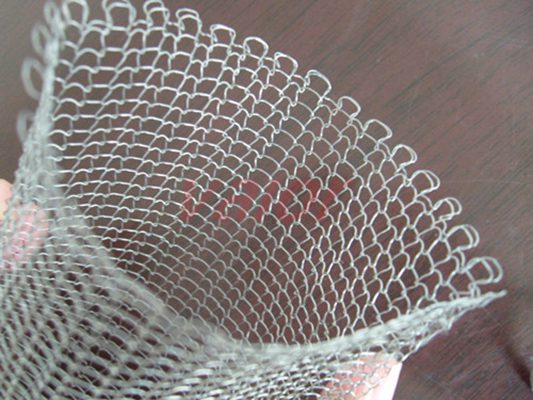

A piece of metal wire knitted mesh sleeve.
Knit mesh is produced in a tube type like socks then flattened into double-layer plain mesh.

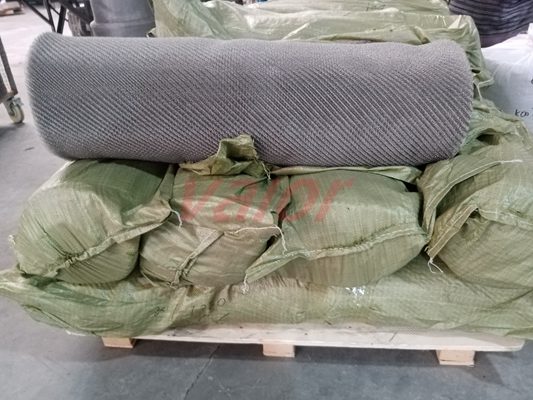

A roll of corrugated knitted wire mesh in 1200mm width.
Corrugated knit mesh is mainly used for wire mesh demister manufacturing. The mesh width covers from 100mm to 1200mm.

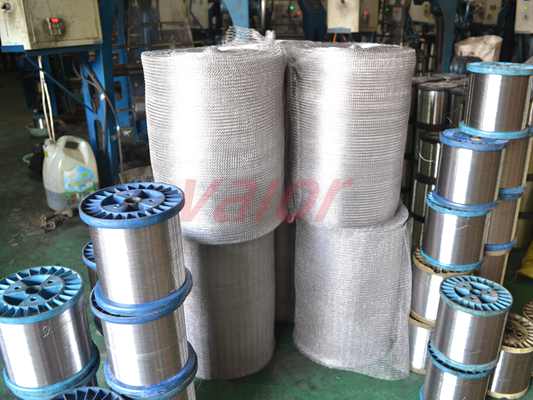

Four rolls of knitted mesh are placed among a pile of stainless steel wire spools.
Either plain or corrugated mesh rolls are available as per order. The material, wire size and mesh width can be customized.

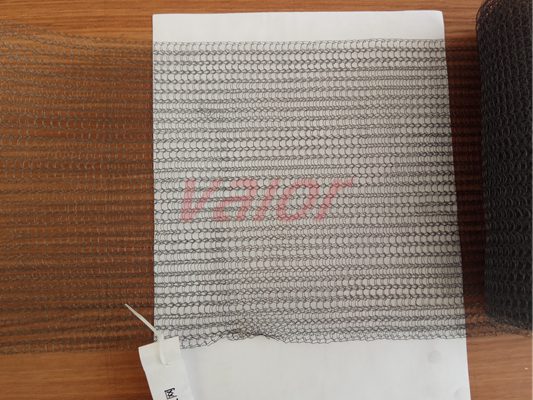

With a white paper beneath, the TA2 wire knit mesh structure is clearly shown.
For high corrosion and special applications, we have kniited wire mesh in 904L, Nickel, Titanium, Monel Alloy, 2507, Alloy 20, Hastelloy C-276, etc. for options.

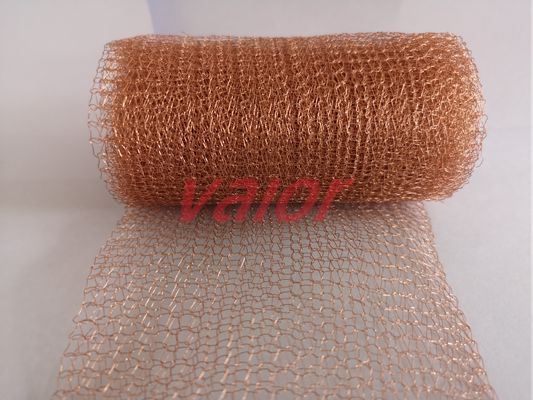

A small roll of pest control copper mesh is on the table.
Pure Copper Wire Mesh, in 0.16mm or 0.23mm wire. If needed, we can provide customized unit package, brand lable, bar code, etc. for direct FBA shipment.

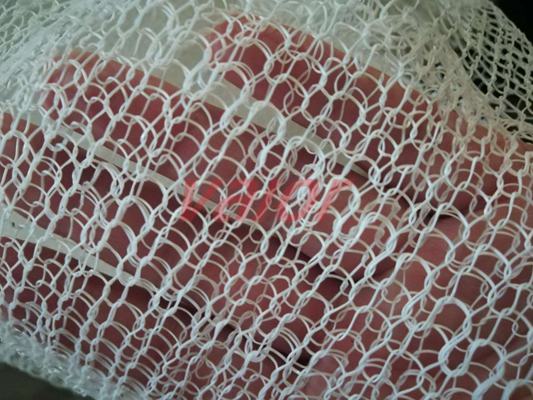

This photo shows PTFE knitted wire mesh details.
PP or PTFE knitted mesh are also available. They have excellent performance in acid or alkaline circumstances while require limited operation temperature.

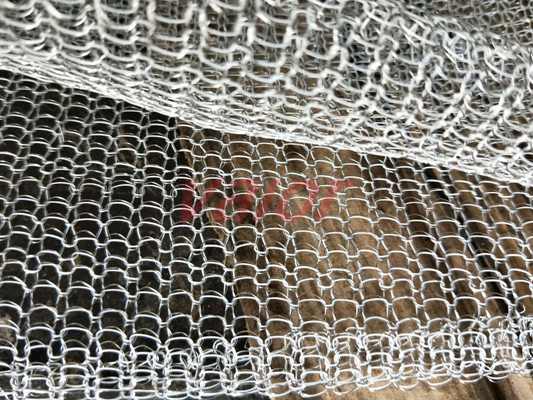

It is co-knitted mesh of one strand of metal wire and one strand of PTFE wire.
This co-knitted mesh, made of one strand of metal wire and PTFE monofilament, combines the strength of metal and the corrosion resistance of PTFE.

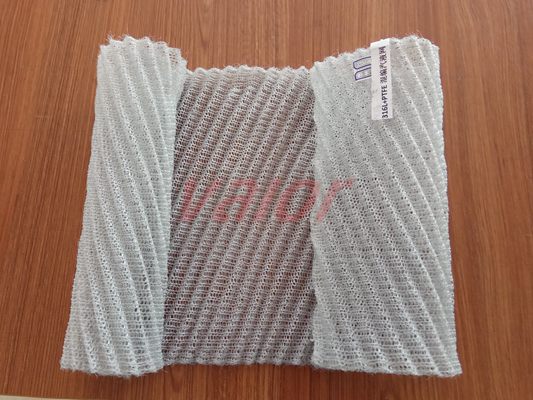

It is co-knitted mesh of one strand of metal wire and multifilament of PTFE fiber.
Co-knit mesh of metal wire and PTFE fiber.
Its advantage is the same as the previous one. And the fiber co-knitting mesh is frequently required in some colescing applications.

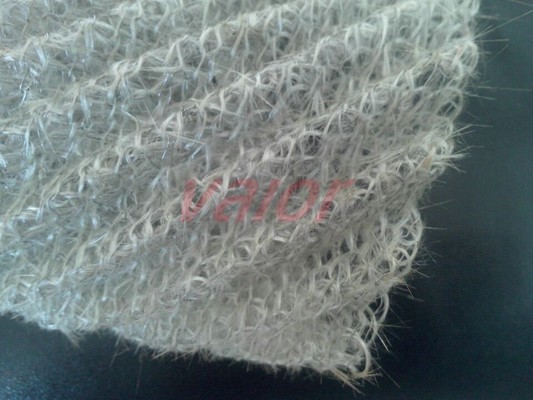

It is co-knitted mesh of one strand of metal wire and multifilament of glass fiber.
Co-knit mesh of metal wire and glass fiber.
It has similar performance as PTFE fiber co-knit mesh while is much more competitive in cost.

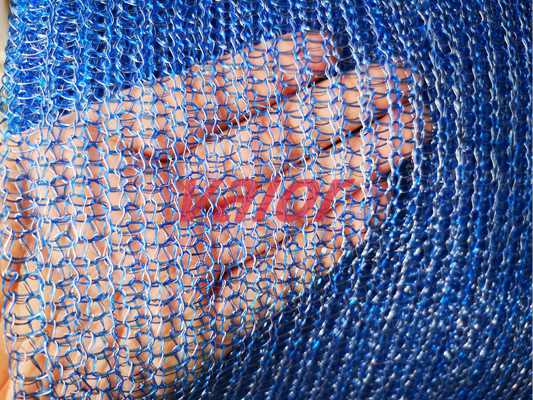

It is co-knitted mesh of one strand of metal wire and one strand of PP wire in blue color.
Co-knit mesh of metal wire and flat PP wire in blue color.

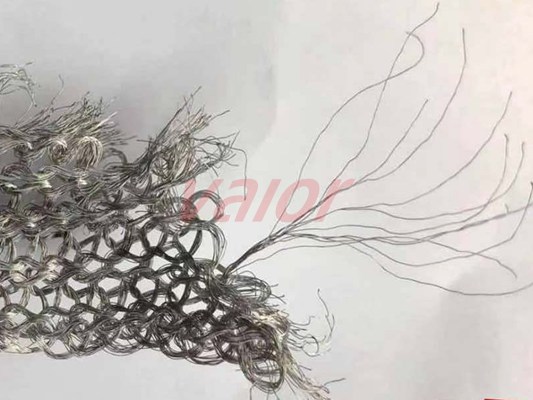

This mesh is knitted with 12 strands of 0.12mm metal wire.
Single wire knitting, 2 strands, 3 strands, 4 strands, 6 strands, 12 strands.
Your Needs, Our Mission!

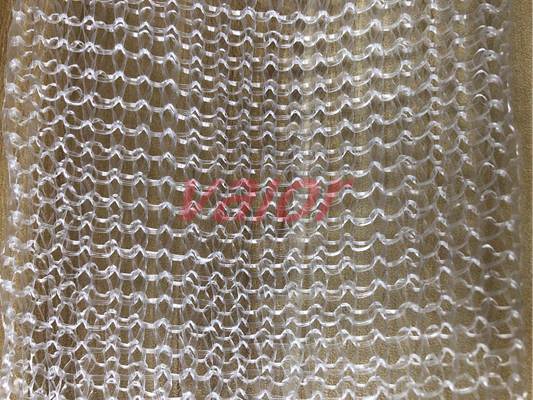

It is a piece of mesh knitted with transparent PP flat yarn.
Transparent PP flat wire knitted mesh. Customized roll length and package.

Welcome to contact Mr. Li An for FREE support and more details!
For your convenience:  Cell / Whatsapp: +86 13333087316  Email: ann@chinademister.com
