Chevron Mist Eliminator / Vane Pack Mist Eliminator

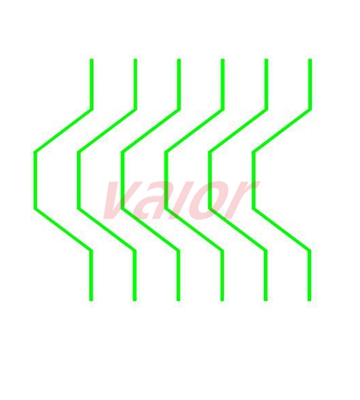

A chevron plate with C shape.

C Type Vane Pack Mist Eliminator

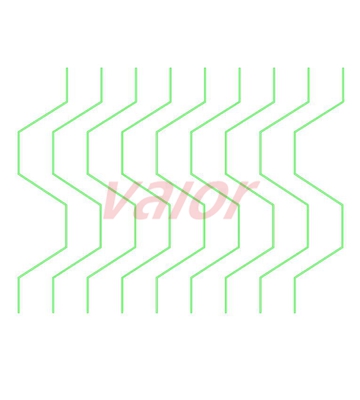

A chevron plate with S shape.

S Type Vane Pack Mist Eliminator

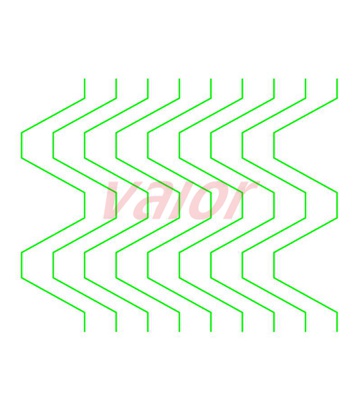

A chevron plate with W shape.

W Type Vane Pack Mist Eliminator

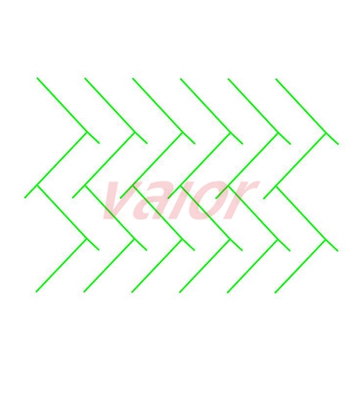

A W shape chevron plate with 3 hooks.

W+Hooks Vane Pack Mist Eliminator
A kind of chevron plate with several right angle bends.

Some Refinery Plants Use It As Crude Oil Distillation Packing

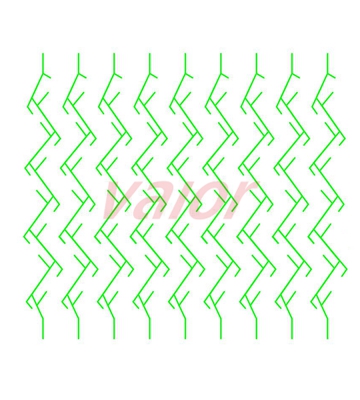

A high efficiency chevron plate with multi bends and hooks.

Multi-Pockets Mist Eliminator

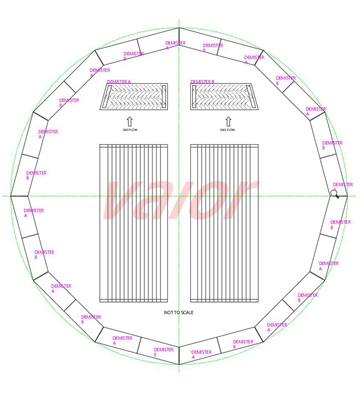

A drawing shows a kind of framed vane pack demister and its pisitioning.

Vane Pack Demisters Used in Ehxaust Gas Cleaning Scrubber

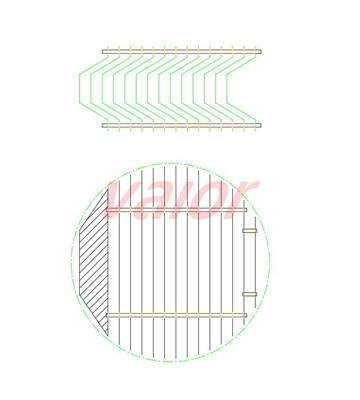

The drawing shows a C type chevron mist eliminator, with big peak and poles connection.

Small Diameter Chevron Demister with High Peak Vanes

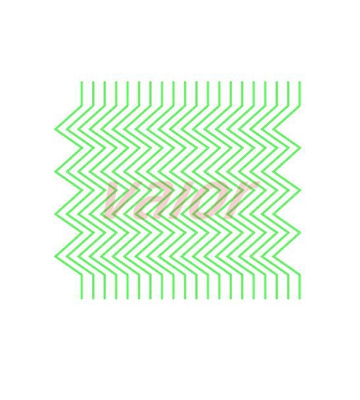

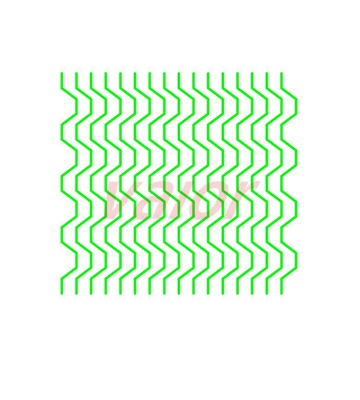

This vane pack demister in the drawing has 8 passes.

8-Pass Max Bendings Super Vane Plate Mist Eliminator
