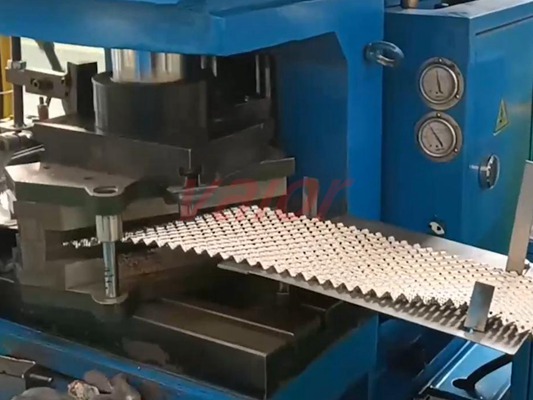

Metal corrugated plate structured packing is made of a thin metal plate that is punched and corrugated. As there are many small protrusions due to surface perforation, the separation efficiency is improved with prolonged retention time on the surface and more sufficient exchange between vapor and liquid droplets. The diameter of the punched holes is 4 ~ 5mm. It is usually made of ultra-low carbon corrosion-resistant stainless steel and is used in the oil industry, fine chemical industry, pharmaceutical equipment, etc.
Metal Plate Structured Packing Specification
| Type | Nominal Specific Surface Area |
Void Fraction | Pressure Drop | No. of Theoretical Plates | Max F Factor |
|---|---|---|---|---|---|
| m2/m3 | % | Pa/m | No. /m | (m/s)*(kg/m3)0.5 | |
| 125X / 125Y | 125 | 98 | 150 | 1-2 | 3 |
| 250X / 250Y | 250 | 97 | 200 | 2-3 | 2.6 |
| 350X / 350Y | 350 | 94 | 300 | 3.0-3.5 | 2 |
| 500X / 500Y | 500 | 92 | 400 | 4-5 | 1.8 |
| 700X / 700Y | 700 | 85 | 650 | 5-7 | 1.6 | More types and molds available in our workshop as per enquiry! |
→
→
Popular Applications of Metal Sheet Corrugated Tower Packing:
(1) Crude Oil Atmospheric and Vacuum Distillation;
(2) Catalytic Cracking Main Fractionator;
(3) Ethylene Crude Distillation and Quench Tower;
(4) Caustic/Amine Absorber and Extractor;
(5) Ethylbenzene/Styrene Separation;
(6) Propylene/Propane Pressurized Fractionation;
(7) Ethylene Oxide and Propylene Oxide Separation;
(8) Gas Recovery and Purification;
(9) Environmental Protection, and Cooling Towers, etc.

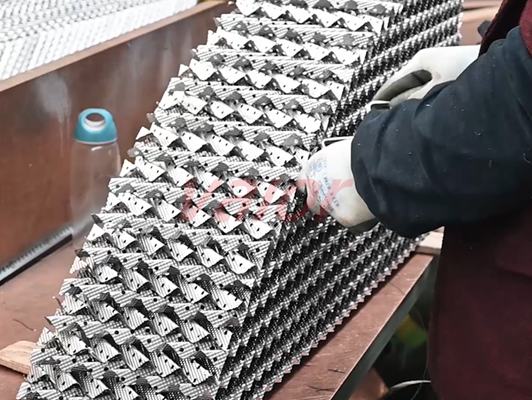

When the metal sheet structured packing is assembled in the tower, the corrugated sheets of the upper and lower packing layers intersect at 90° to facilitate gas-liquid distribution and mixing. The diameter of the packing disk is slightly smaller than the inner diameter of the tower, and the specific recommended value of the reduction depends on the inner diameter of the tower and the block arrangement.
Customization is available for special types, specifications, materials, and other requirements. Welcome your enquiry!
